Square Shape Doorbell Button with Name
(Article: 510-1)

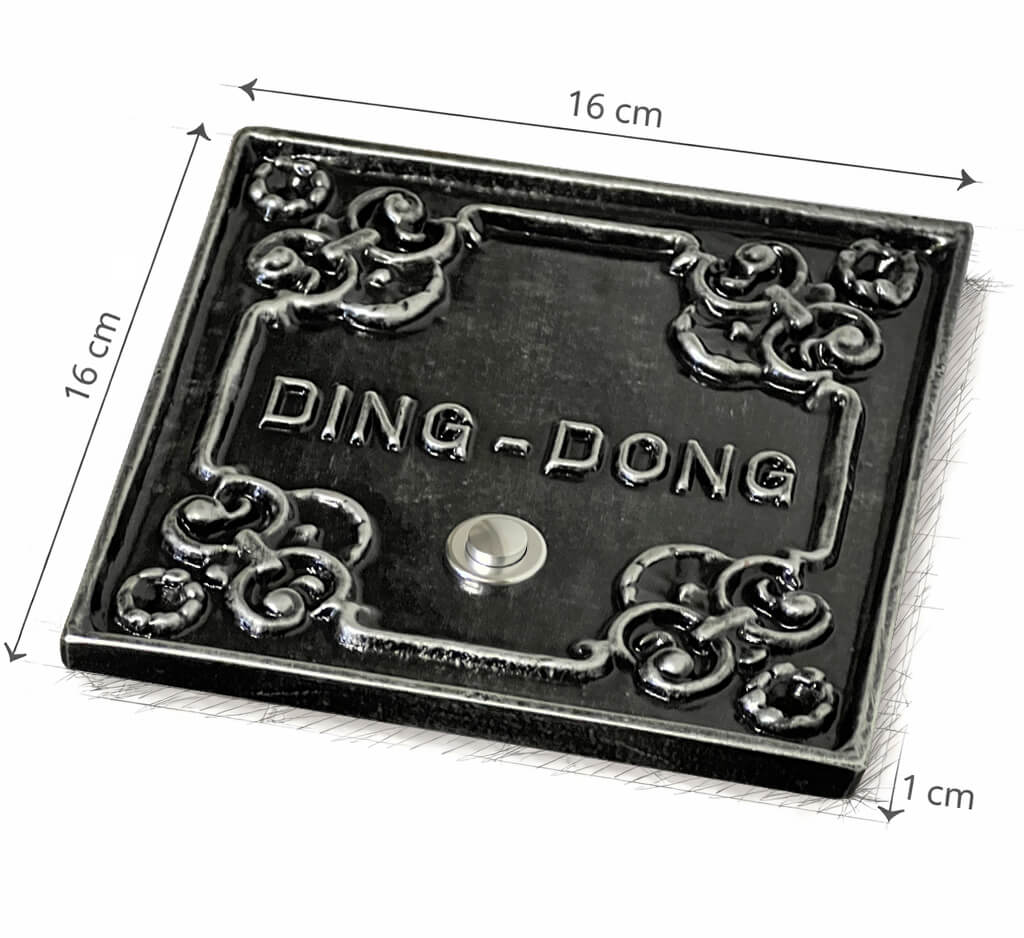

Square Shape Doorbell Button with Name
This square bell sign can be ordered with up to 10 raised letters (block capitals in capital letters only) for your name. The doorbell plate is then individually made in a single casting.
The bell button is simply connected to the existing bell wire.
Four brass screws for fixing the bell plate are enclosed.
Depending on the length of the name, or the number of letters, we use different font sizes of 9mm, 13mm, 16mm to 20mm letter height. Two-line labels are also possible on request.
The bell button is simply connected to the existing bell wire.
Four brass screws for fixing the bell plate are enclosed.
Depending on the length of the name, or the number of letters, we use different font sizes of 9mm, 13mm, 16mm to 20mm letter height. Two-line labels are also possible on request.
For a special surface coating, our patina is applied by hand. Effects on the ornaments can be highlighted through this process. With a dual-patina, this effects are even more visible in adding a certain depth to structured surfaces and make it look like old material from bygone areas.
Show all available Colors.
Specifications of the bell buttons:
 |
Push button: Black plastic Push button diameter: Ø 10 mm Diameter insgesamt: 18 mm |
|---|---|
 |
Push button: Aluminum Push button diameter: Ø 11,5 mm Diameter insgesamt: 22 mm |
 |
Push button: Black plastic Push button diameter: Ø 11,5 mm Diameter insgesamt: 22 mm |
| Switching capacity max. | 12 V AC/DC 1,5 A |
| Switching capacity min. | 5 V / 1 mA |
| Connection | 0,6 to 0,8 mm wires |
| Switching distance | 0,8 mm to 2 mm |
| Total actuation path | 1,2 mm to 3 mm |
| Operating temperatur | -20 to +60 °C |
| Protection class | IP54 installed in a vertical plate |
The button contacts have to be connected to the existing doorbell.
Bell power adapter, bell wire and bell are not included.
