Sign with bell button
(Article: 465)

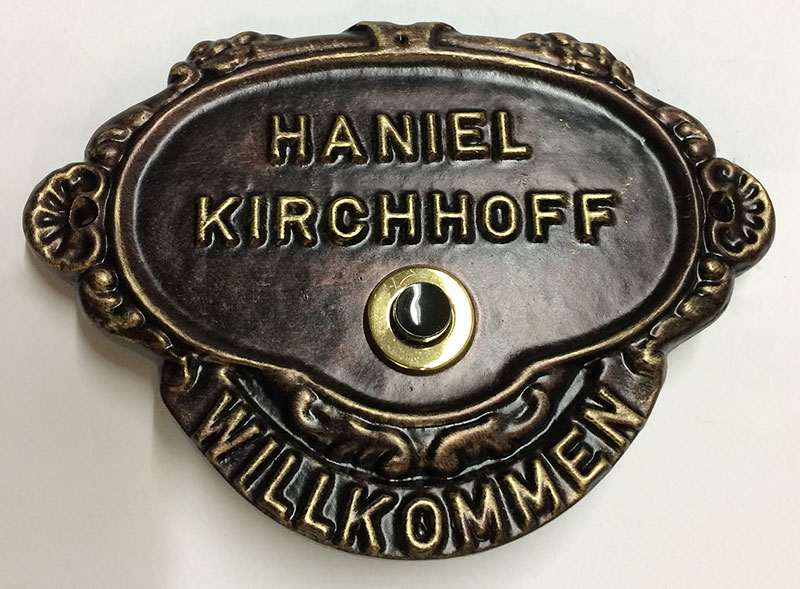

Sign with bell button
Small, vintage doorbell plate for individual inscription with raised letters. Depending on the length of the name, the individual letters are 13mm or 9mm high. The text 'WILLKOMMEN' at the bottom edge of the doorbell is an integral part of this model and cannot be changed.
For technical reasons, a maximum of 6-7 letters are allowed for lettering with white or gold paint possible.
For technical reasons, a maximum of 6-7 letters are allowed for lettering with white or gold paint possible.
For a special surface coating, our patina is applied by hand. Effects on the ornaments can be highlighted through this process. With a dual-patina, this effects are even more visible in adding a certain depth to structured surfaces and make it look like old material from bygone areas.
Show all available Colors.
Specifications of the bell buttons:
 |
Push button: Black plastic Push button diameter: Ø 10 mm Diameter insgesamt: 18 mm |
|---|---|
 |
Push button: Aluminum Push button diameter: Ø 11,5 mm Diameter insgesamt: 22 mm |
 |
Push button: Black plastic Push button diameter: Ø 11,5 mm Diameter insgesamt: 22 mm |
| Switching capacity max. | 12 V AC/DC 1,5 A |
| Switching capacity min. | 5 V / 1 mA |
| Connection | 0,6 to 0,8 mm wires |
| Switching distance | 0,8 mm to 2 mm |
| Total actuation path | 1,2 mm to 3 mm |
| Operating temperatur | -20 to +60 °C |
| Protection class | IP54 installed in a vertical plate |
The button contacts have to be connected to the existing doorbell.
Bell power adapter, bell wire and bell are not included.
