Doorbell Plate With Speech Slots
Cast Aluminium Doorbell plate with milled intercom slots as a replacement for an existing intercom system front plate.
The positioning of the bell button and the frame for the name tag can be customized upon request.

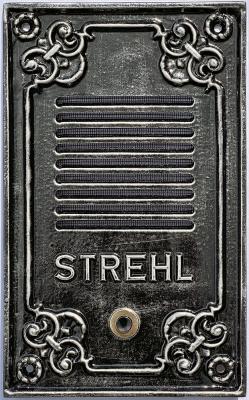

Instead of the name tag frame, you can also choose your name with solid, raised cast letters (see pictures 5 - 8). With a font height of 13mm, up to 10 letters are possible.
The distance between the mounting holes is 125mm x 223mm, four brass or stainless steel screws with dowels are included.
We also offer a house number plate Art.-Nr. 511 to match this doorbell plate.
The positioning of the bell button and the frame for the name tag can be customized upon request.
Instead of the name tag frame, you can also choose your name with solid, raised cast letters (see pictures 5 - 8). With a font height of 13mm, up to 10 letters are possible.
The distance between the mounting holes is 125mm x 223mm, four brass or stainless steel screws with dowels are included.
We also offer a house number plate Art.-Nr. 511 to match this doorbell plate.
For a special surface coating, our patina is applied by hand. Effects on the ornaments can be highlighted through this process. With a dual-patina, this effects are even more visible in adding a certain depth to structured surfaces and make it look like old material from bygone areas.
Show all available Colors.
Specifications of the bell buttons:
 |
Push button: Black plastic Push button diameter: Ø 10 mm Diameter insgesamt: 18 mm |
|---|---|
 |
Push button: Aluminum Push button diameter: Ø 11,5 mm Diameter insgesamt: 22 mm |
 |
Push button: Black plastic Push button diameter: Ø 11,5 mm Diameter insgesamt: 22 mm |
| Switching capacity max. | 12 V AC/DC 1,5 A |
| Switching capacity min. | 5 V / 1 mA |
| Connection | 0,6 to 0,8 mm wires |
| Switching distance | 0,8 mm to 2 mm |
| Total actuation path | 1,2 mm to 3 mm |
| Operating temperatur | -20 to +60 °C |
| Protection class | IP54 installed in a vertical plate |
The button contacts have to be connected to the existing doorbell.
Bell power adapter, bell wire and bell are not included.
